LlamaIndex 基础 07-workflow

发表于 更新于 分类于 ， ， 阅读次数： 本文字数： 17k 阅读时长 ≈ 15 分钟

本脚本展示了如何使用 llama_index 库中的工作流（Workflow）系统来构建和运行复杂的流程管理逻辑。通过定义不同的事件类型、步骤函数以及上下文对象，可以实现从简单的线性流程到并发执行、事件收集、嵌套工作流等多种复杂的工作流模式

顺序工作流

工作流通过继承 Workflow 类实现，这个类包含几个步骤，并且每个步骤使用装饰器 @step 装饰

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
from llama_index.core.workflow import (
    StartEvent,
    StopEvent,
    Workflow,
    step,
)

class MyWorkflow(Workflow):

    @step
    async def my_step(self,ev:StartEvent)->StopEvent:
        return StopEvent(result="hello world")

w=MyWorkflow(timeout=10,verbose=False)
result=await w.run()
print(result)

hello world

以上工作流定义了开头步骤（StartEvent）和结束标志（StopEvent），这很重要

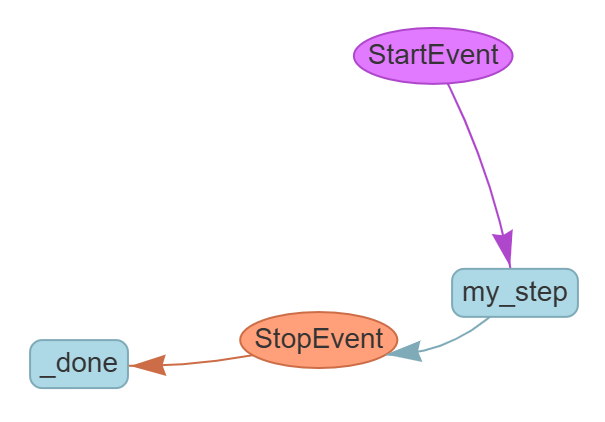

LlamaIndex 通过以下代码将工作流可视化，可视化内容存在 html，使用浏览器打开即可

1
2
from llama_index.utils.workflow import draw_all_possible_flows
draw_all_possible_flows(MyWorkflow, filename="basic_workflow.html")

2024-12-19_1054111

进一步地，我们通过定义不同的 Event，构建多级的工作流

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
from llama_index.core.workflow import (
    StartEvent,
    StopEvent,
    Workflow,
    step,
    Event,
)

# 定义事件
class FirstEvent(Event):
    first_output: str

class SecondEvent(Event):
    second_output: str

# 定义工作流
class MyWorkflow(Workflow):
    @step
    async def step_one(self, ev: StartEvent) -> FirstEvent:
        print(ev.first_input)
        return FirstEvent(first_output="First step complete.")

    @step
    async def step_two(self, ev: FirstEvent) -> SecondEvent:
        print(ev.first_output)
        return SecondEvent(second_output="Second step complete.")

    @step
    async def step_three(self, ev: SecondEvent) -> StopEvent:
        print(ev.second_output)
        return StopEvent(result="Workflow complete.")

w = MyWorkflow(timeout=10, verbose=False)
result = await w.run(first_input="Start the workflow.")
print(result)

Start the workflow.
First step complete.
Second step complete.
Workflow complete.

总结 ：

  • WorkFLow 是一个起点为 StartEvent，终点为 StopEvent 的流程
  • 通过定义不同的 Event，构建其多级的工作流
  • 工作流内支持变量的流转

分支循环工作流

以上例子，只展示了顺序执行的工作流，对于复杂的分支、循环工作流如何构建呢？还是一样，首先定义监听事件 Event，通过不同的指定方式来构建不同的工作流

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# 循环工作流
class LoopEvent(Event):
    loop_output: str

# 定义工作流
import random
class LoopWorkflow(Workflow):
    @step
    async def step_one(self, ev: StartEvent | LoopEvent) -> FirstEvent | LoopEvent:
        if random.randint(0, 1) == 0:
            print("Bad thing happened")
            return LoopEvent(loop_output="Back to step one.")
        else:
            print("Good thing happened")
            return FirstEvent(first_output="First step complete.")

    @step
    async def step_two(self, ev: FirstEvent) -> SecondEvent:
        print(ev.first_output)
        return SecondEvent(second_output="Second step complete.")

    @step
    async def step_three(self, ev: SecondEvent) -> StopEvent:
        print(ev.second_output)
        return StopEvent(result="Workflow complete.")

w = LoopWorkflow(timeout=10, verbose=False)
result = await w.run()
print(result)

draw_all_possible_flows(LoopWorkflow, filename="loop_workflow.html")
1
2
3
4
5
6
7
8
9
10
11
12
13
Bad thing happened
Bad thing happened
Bad thing happened
Good thing happened
First step complete.
Second step complete.
Workflow complete.
<class 'NoneType'>
<class '__main__.FirstEvent'>
<class '__main__.LoopEvent'>
<class 'llama_index.core.workflow.events.StopEvent'>
<class '__main__.SecondEvent'>
loop_workflow. Html

多次运行代码，可以发现代码工作流流程有两种：

  • A: one[FirstEvent]->two[SecondEvent]-three[StopEvent]
  • B: 随机次数 one [LoopEvent]-> A

也就是说：下一步执行那个动作，取决于当前返回事件和动作的监听事件，比如动作 two 监听 FirstEvent，只要当前返回事件是 FirstEvent，下一步就会执行 two，这一点和 MetaGPT 定义 WorkFlow 的概念类似

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
# 分支工作流
class BranchA1Event(Event):
    payload: str

class BranchA2Event(Event):
    payload: str

class BranchB1Event(Event):
    payload: str

class BranchB2Event(Event):
    payload: str

class BranchWorkflow(Workflow):
    @step
    async def start(self, ev: StartEvent) -> BranchA1Event | BranchB1Event:
        if random.randint(0, 1) == 0:
            print("Go to branch A")
            return BranchA1Event(payload="Branch A")
        else:
            print("Go to branch B")
            return BranchB1Event(payload="Branch B")

    @step
    async def step_a1(self, ev: BranchA1Event) -> BranchA2Event:
        print(ev.payload)
        return BranchA2Event(payload=ev.payload)

    @step
    async def step_b1(self, ev: BranchB1Event) -> BranchB2Event:
        print(ev.payload)
        return BranchB2Event(payload=ev.payload)

    @step
    async def step_a2(self, ev: BranchA2Event) -> StopEvent:
        print(ev.payload)
        return StopEvent(result="Branch A complete.")

    @step
    async def step_b2(self, ev: BranchB2Event) -> StopEvent:
        print(ev.payload)
        return StopEvent(result="Branch B complete.")

w = BranchWorkflow(timeout=10, verbose=False)
result = await w.run()
print(result)

draw_all_possible_flows(BranchWorkflow, filename="branch_workflow.html")
1
2
3
4
5
6
7
8
9
10
11
12
Go to branch A
Branch A
Branch A
Branch A complete.
<class 'NoneType'>
<class '__main__.BranchA1Event'>
<class '__main__.BranchB1Event'>
<class '__main__.BranchA2Event'>
<class 'llama_index.core.workflow.events.StopEvent'>
<class '__main__.BranchB2Event'>
<class 'llama_index.core.workflow.events.StopEvent'>
branch_workflow. Html

工作流上下文

在以上例子中，可以看见变量状态随着流程进行传递，如果要在未直接连接的步骤之间传递数据，则需要通过两者之间的所有步骤传递数据。这会使您的代码更难阅读和维护
为了解决这个问题，为工作流引入一个全局可用的对象 Context

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
from llama_index.core.workflow import (
    StartEvent,
    StopEvent,
    Workflow,
    step,
    Event,
    Context,
)

class SetupEvent(Event):
    query: str

class StepTwoEvent(Event):
    query: str

class StatefulFlow(Workflow):
    @step
    async def start(
        self, ctx: Context, ev: StartEvent
    ) -> SetupEvent | StepTwoEvent:
        db = await ctx.get("some_database", default=None)
        if db is None:
            print("Need to load data")
            return SetupEvent(query=ev.query)

        # do something with the query
        return StepTwoEvent(query=ev.query)

    @step
    async def setup(self, ctx: Context, ev: SetupEvent) -> StartEvent:
        # load data
        await ctx.set("some_database", [1, 2, 3])
        return StartEvent(query=ev.query)

    @step
    async def step_two(self, ctx: Context, ev: StepTwoEvent) -> StopEvent:
        # do something with the data
        print("Data is ", await ctx.get("some_database"))

        return StopEvent(result=await ctx.get("some_database"))

w = StatefulFlow(timeout=10, verbose=False)
result = await w.run(query="Some query")
print(result)

Need to load data
Data is [1, 2, 3]
[1, 2, 3]

流式处理事件

LlamaIndex 中的 WorkFlow 的 Context 支持传递事件，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import nest_asyncio
nest_asyncio.apply()

from llama_index.core.workflow import (
    StartEvent,
    StopEvent,
    Workflow,
    step,
    Event,
    Context,
)
import asyncio
from llama_index.utils.workflow import draw_all_possible_flows
from llama_index.llms.ollama import Ollama
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
class FirstEvent(Event):
    first_output: str

class SecondEvent(Event):
    second_output: str
    response: str

class ProgressEvent(Event):
    msg: str

class MyWorkflow(Workflow):
    @step
    async def step_one(self, ctx: Context, ev: StartEvent) -> FirstEvent:
        ctx.write_event_to_stream(ProgressEvent(msg="Step one is happening"))
        return FirstEvent(first_output="First step complete.")

    @step
    async def step_two(self, ctx: Context, ev: FirstEvent) -> SecondEvent:
        llm  = Ollama(
            model="qwen2.5:latest",
            request_timeout=360.0,
            base_url='http://localhost:11434')

        generator = await llm.astream_complete(
            "用中文给我讲2个笑话，每个笑话不超过15个字"
        )
        async for response in generator:
            # Allow the workflow to stream this piece of response
            ctx.write_event_to_stream(ProgressEvent(msg=response.delta))
        return SecondEvent(
            second_output="Second step complete, full response attached",
            response=str(response),
        )

    @step
    async def step_three(self, ctx: Context, ev: SecondEvent) -> StopEvent:
        ctx.write_event_to_stream(ProgressEvent(msg="Step three is happening"))
        return StopEvent(result="Workflow complete.")
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
async def main():
    w = MyWorkflow(timeout=30, verbose=True)
    handler = w.run(first_input="Start the workflow.")

    async for ev in handler.stream_events():
        if isinstance(ev, ProgressEvent):
            print(ev.msg)

    final_result = await handler
    print("Final result", final_result)

    draw_all_possible_flows(MyWorkflow, filename="streaming_workflow.html")

if __name__ == "__main__":
    asyncio.run(main())
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Running step step_one
Step step_one produced event FirstEvent
Running step step_two
Step one is happening
1
.
 老
婆
做饭
咸
，
加
点
水
稀
释
一下
。

2
.

 why
 did
 the
 tomato
 turn
 red
?
 Because
 it
 saw
 the
 salad
 dressing
!
Step step_two produced event SecondEvent
Running step step_three
Step step_three produced event StopEvent
Step three is happening
Final result Workflow complete.
\<class 'NoneType'>
\<class '__main__.FirstEvent'>
\<class 'llama_index.core.workflow.events.StopEvent'>
\<class '__main__.SecondEvent'>
streaming_workflow.html

工作流的并发执行

Llamaindex 的工作流可以被并发执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
import random

#  一次性发出多个事件
class StepTwoEvent(Event):
    query: str

class StepTwoEvent(Event):
    query: str

class ParallelFlow(Workflow):
    @step
    async def start(self, ctx: Context, ev: StartEvent) -> StepTwoEvent:
        ctx.send_event(StepTwoEvent(query="Query 1"))
        ctx.send_event(StepTwoEvent(query="Query 2"))
        ctx.send_event(StepTwoEvent(query="Query 3"))

    @step(num_workers=4)
    async def step_two(self, ctx: Context, ev: StepTwoEvent) -> StopEvent:
        print("Running slow query ", ev.query)
        await asyncio.sleep(random.randint(1, 5))

        return StopEvent(result=ev.query)
1
2
3
4
5
6
7
8
Async def main ():
    W = ParallelFlow (timeout=30, verbose=True)
    await  w.run ()

    Draw_all_possible_flows (ParallelFlow, filename="parallel_workflow. Html")

If __name__ == "__main__":
    Asyncio.Run (main ())
1
2
3
4
5
6
7
8
9
10
11
12
13
Running step start
Step start produced no event
Running step step_two
Running slow query  Query 1
Running step step_two
Running slow query  Query 2
Running step step_two
Running slow query  Query 3
Step step_two produced event StopEvent
<class 'NoneType'>
<class '__main__.StepTwoEvent'>
<class 'llama_index.core.workflow.events.StopEvent'>
Parallel_workflow. Html

以上流程，step_two 每次接受一个结果就执行，这在某些情况下适合，在某些情况下需要等待所有调用完成再执行，此时通过 collect_events 来判断

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Class StepThreeEvent (Event):
    Result: str

Class ConcurrentFlow (Workflow):
    @step
    Async def start (self, ctx: Context, ev: StartEvent) -> StepTwoEvent:
        Ctx. Send_event (StepTwoEvent (query="Query 1"))
        Ctx. Send_event (StepTwoEvent (query="Query 2"))
        Ctx. Send_event (StepTwoEvent (query="Query 3"))

    @step (num_workers=4)
    Async def step_two (self, ctx: Context, ev: StepTwoEvent) -> StepThreeEvent:
        Print ("Running query ", ev. Query)
        Await asyncio.Sleep (random.Randint (1, 5))
        Return StepThreeEvent (result=ev. Query)

    @step
    Async def step_three (self, ctx: Context, ev: StepThreeEvent) -> StopEvent:
        # wait until we receive 3 events
        Result = ctx. Collect_events (ev, [StepThreeEvent] * 3)
        If result is None:
            Return None

        # do something with all 3 results together
        Print ('result: ', result)
        Return StopEvent (result="Done")

Async def main ():
    W = ConcurrentFlow (timeout=30, verbose=True)
    await  w.run ()

    Draw_all_possible_flows (ConcurrentFlow, filename="concurrent_workflow. Html")

If __name__ == "__main__":
    Asyncio.Run (main ())
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Running step start
Step start produced no event
Running step step_two
Running query  Query 1
Running step step_two
Running query  Query 2
Running step step_two
Running query  Query 3
Step step_two produced event StepThreeEvent
Step step_two produced event StepThreeEvent
Running step step_three
Step step_three produced no event
Running step step_three
Step step_three produced no event
Step step_two produced event StepThreeEvent
Running step step_three
Result: [StepThreeEvent (result='Query 1'), StepThreeEvent (result='Query 2'), StepThreeEvent (result='Query 3')]
Step step_three produced event StopEvent
<class 'NoneType'>
<class '__main__.StepTwoEvent'>
<class 'llama_index.core.workflow.events.StopEvent'>
<class '__main__.StepThreeEvent'>
Concurrent_workflow. Html

以上过程是等待同类型的 3 个事件，其实也可以等待不同类型的事件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
Class StepAEvent (Event):
    Query: str

Class StepBEvent (Event):
    Query: str

Class StepCEvent (Event):
    Query: str

Class StepACompleteEvent (Event):
    Result: str

Class StepBCompleteEvent (Event):
    Result: str

Class StepCCompleteEvent (Event):
    Result: str

Class ConcurrentFlow 2 (Workflow):
    @step
    Async def start (
        Self, ctx: Context, ev: StartEvent
    ) -> StepAEvent | StepBEvent | StepCEvent:
        Ctx. Send_event (StepAEvent (query="Query 1"))
        Ctx. Send_event (StepBEvent (query="Query 2"))
        Ctx. Send_event (StepCEvent (query="Query 3"))

    @step
    Async def step_a (self, ctx: Context, ev: StepAEvent) -> StepACompleteEvent:
        Print ("Doing something A-ish")
        Return StepACompleteEvent (result=ev. Query)

    @step
    Async def step_b (self, ctx: Context, ev: StepBEvent) -> StepBCompleteEvent:
        Print ("Doing something B-ish")
        Return StepBCompleteEvent (result=ev. Query)

    @step
    Async def step_c (self, ctx: Context, ev: StepCEvent) -> StepCCompleteEvent:
        Print ("Doing something C-ish")
        Return StepCCompleteEvent (result=ev. Query)

    @step
    Async def step_three (
        Self,
        Ctx: Context,
        Ev: StepACompleteEvent | StepBCompleteEvent | StepCCompleteEvent,
    ) -> StopEvent:
        Print ("Received event ", ev. Result)

        # wait until we receive 3 events
        If (
            Ctx. Collect_events (
                Ev,
                [StepCCompleteEvent, StepACompleteEvent, StepBCompleteEvent],
            )
            Is None
        ):
            Return None

        # do something with all 3 results together
        Return StopEvent (result="Done")

Async def main ():
    W = ConcurrentFlow 2 (timeout=30, verbose=True)
    await  w.run ()

    Draw_all_possible_flows (ConcurrentFlow 2, filename="concurrent 2_workflow. Html")

If __name__ == "__main__":
    Asyncio.Run (main ())
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Running step start
Step start produced no event
Running step step_a
Doing something A-ish
Step step_a produced event StepACompleteEvent
Running step step_b
Doing something B-ish
Step step_b produced event StepBCompleteEvent
Running step step_c
Doing something C-ish
Step step_c produced event StepCCompleteEvent
Running step step_three
Received event  Query 1
Step step_three produced no event
Running step step_three
Received event  Query 2
Step step_three produced no event
Running step step_three
Received event  Query 3
Step step_three produced event StopEvent
<class 'NoneType'>
<class '__main__.StepAEvent'>
<class '__main__.StepBEvent'>
<class '__main__.StepCEvent'>
<class '__main__.StepACompleteEvent'>
<class '__main__.StepBCompleteEvent'>
<class '__main__.StepCCompleteEvent'>
<class 'llama_index.core.workflow.events.StopEvent'>
concurrent 2_workflow. Html

继承自定义工作流类

自定义工作流是继承 WorkFlow 类，其实自定义的工作流也是可以作为其他类的基类被继承，相当于实现了一个基础工作流，继承这个工作流再实现一个更加复杂的子类工作流

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
From llama_index. Core. Workflow import (
    StartEvent,
    StopEvent,
    Workflow,
    Step,
    Event,
    Context,
)

Class Step 2 Event (Event):
    Query: str

Class Step 3 Event (Event):
    Query: str

Class MainWorkflow (Workflow):
    @step
    Async def start (self, ev: StartEvent) -> Step 2 Event:
        Print ("Starting up")
        Return Step 2 Event (query=ev. Query)

    @step
    Async def step_two (self, ev: Step 2 Event) -> Step 3 Event:
        Print ("Sending an email")
        Return Step 3 Event (query=ev. Query)

    @step
    Async def step_three (self, ev: Step 3 Event) -> StopEvent:
        Print ("Finishing up")
        Return StopEvent (result=ev. Query)

W = MainWorkflow (timeout=10, verbose=False)
result = await w.run (query="Initial query")
Print (result)
Starting up
Sending an email
Finishing up
Initial query

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Class Step 2 BEvent (Event):
    Query: str

Class CustomWorkflow (MainWorkflow):
    @step
    Async def step_two (self, ev: Step 2 Event) -> Step 2 BEvent:
        Print ("Sending an email")
        Return Step 2 BEvent (query=ev. Query)

    @step
    Async def step_two_b (self, ev: Step 2 BEvent) -> Step 3 Event:
        Print ("Also sending a text message")
        Return Step 3 Event (query=ev. Query)

W = CustomWorkflow (timeout=10, verbose=False)
result = await w.run (query="Initial query")
Print (result)

Starting up
Sending an email
Also sending a text message
Finishing up
Initial query

嵌套工作流

将某个工作流嵌入到已存在的工作流中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
From llama_index. Core. Workflow import (
    StartEvent,
    StopEvent,
    Workflow,
    Step,
    Event,
    Context,
)
From llama_index. Utils. Workflow import draw_all_possible_flows

Class Step 2 Event (Event):
    Query: str

Class MainWorkflow (Workflow):
    @step
    Async def start (
        Self, ctx: Context, ev: StartEvent, reflection_workflow: Workflow
    ) -> Step 2 Event:
        Print ("Need to run reflection")
        Res = await reflection_workflow.Run (query=ev. Query)

        Return Step 2 Event (query=res)

    @step
    Async def step_two (self, ctx: Context, ev: Step 2 Event) -> StopEvent:
        Print ("Query is ", ev. Query)
        # do something with the query here
        Return StopEvent (result=ev. Query)

Class ReflectionFlow (Workflow):
    @step
    Async def sub_start (self, ctx: Context, ev: StartEvent) -> StopEvent:
        Print ("Doing custom reflection")
        Return StopEvent (result="Improved query")

W = MainWorkflow (timeout=10, verbose=False)
w.add_workflows (reflection_workflow=ReflectionFlow ())
result = await w.run (query="Initial query")
Print (result)

Need to run reflection
Doing custom reflection
Query is Improved query
Improved query
